mh08:Clay Paky Mytos Spotlight MSD 470 watt
€125,00

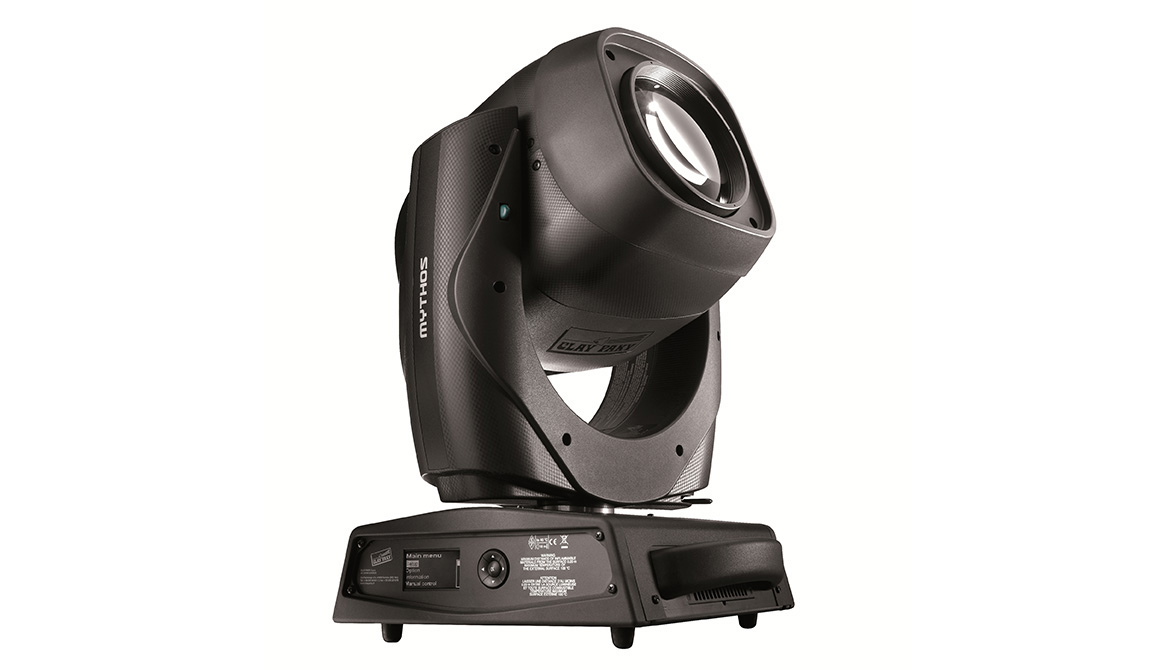

Mythos is a highly advanced form of hybrid light: first of all, it is an excellent 470 watt-lamp spotlight, which produces an outstanding large light beam, featuring a zoom that ranges from 4° to 50° (1:12 ratio).
Light beam is sharp, with perfectly defined edges, from the first millimetres after the front lens right along its entire length. The zoom is optimized for focusing, which is separate from that of the fixed and rotating gobos. Its movements are smooth, fast and very quiet. Mythos also features a completely redesigned indexed visual effect disc, which may be superimposed on all the gobos, both in and out of focus.
But Mythos is also an extraordinary beam light, allowing you to switch to a minimum fixed beam angle of just 2.5°. A large, very dense, 160 mm-diameter light beam leaves the Mythos’s front lens and remains parallel for its entire length even at great distances.
Mythos is a very versatile tool, which is useful in any situation and therefore an excellent investmen
INPUT POWER: 700VA at 230V 50Hz
LIGHT SOURCE
470W discharge lamp
– Type: New MSD Platinum 20RB
– Life: 1,500hrs
– Luminoux flux: 23,000 lm
– Cap by faston Tyco 187 (4,8 mm)
OPTICS
160mm diam. front lens
Electronic focusing for a perfectly sharp light beam along its entire length
Zoom ranging from 4° to 31° for fixed gobos sharp focusing
Zoom range from 6.7° to 50° for rotating gobos sharp focusing
BEAM mode with 2.5° aperture and “pipe” effect
COLOR SYSTEM
CMY color system based on 3 gradually fading color wheels
14 color filters on three wheels
2 CTO filters (3,200K and 2,500K) + 1 CTB filter
EFFECTS SECTION
2 gobo wheels:
– wheel with 6 HQ dichroic, indexable and interchangeable rotating gobos (Ø 25.9mm).
– interchangeable and variable rotating wheel with 18+1 fixed metal gobos (including 6 beam reducers).
Selectable Gobo-Shake function
Advanced Visual Effect Disc (Animation disc)
2 indexable and interchangeable rotating prisms (8-facet and linear prism)
Frost unit to soften the beam edge
High precision 0-100% dimmer
Mechanical shutter and adjustable speed strobe effect
CONTROL AND PROGRAMMING
30/34 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Art-Net / RDM
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Gobo Indexing Resolution: 16 bit
Focus Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 5 pole XLR input and output
MOVING BODY
Angle:
– PAN = 540° – TILT = 244°
Resolution:
– PAN = 2.11° – PAN FINE = 0.008°
– TILT = 0.960° – TILT FINE = 0.004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.
