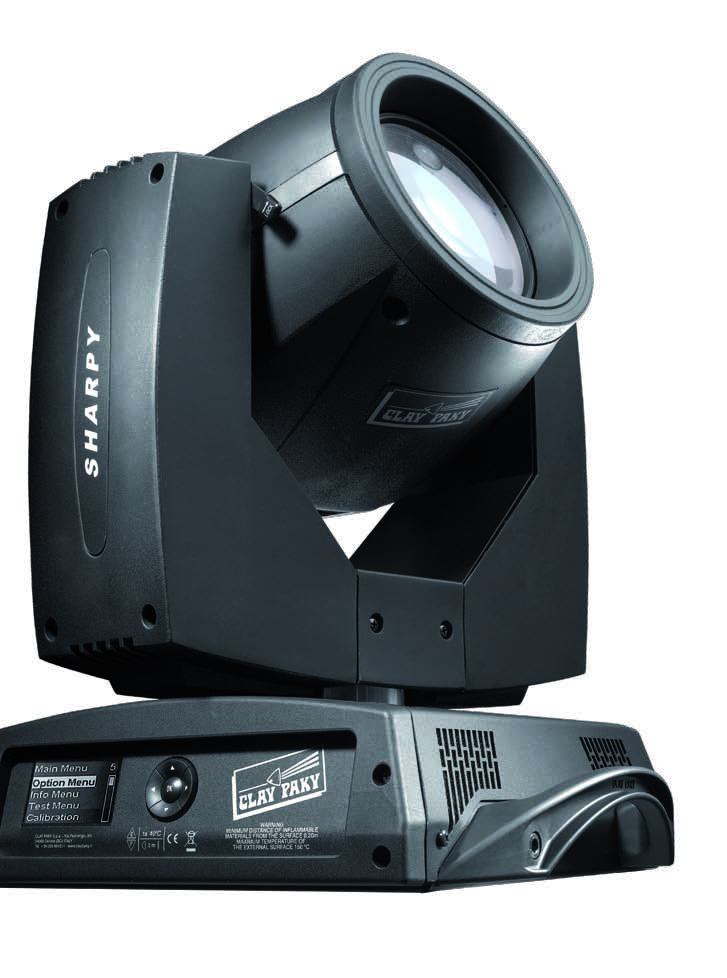

mh06:Clay Paky Sharpy Beamlight MSD 189 watt
€75,00
Sharpy is a 189W moving beam light with an unprecedented brightness usually achievable only with far greater wattages. Weighing just 16 kg, Sharpy produces a perfectly parallel, laser-like beam with an incredible output of 59,760 lx at 20m (5,100 footcandles at 65 ft). Sharpy is also groundbreaking for the purity of its beam, which is sharply defined and free of any halo or discoloration around the edges. It offers 14 different colors and 17 gobos, allowing you to change the shape of the beam and create an array of spectacular mid-air effects. With its light weight and modest footprint, Sharpy is small enough to be fitted anywhere – on trusses at live and TV events, on stage, in showrooms or conference rooms.
Sharpy is also available in a shiny mirror-finish chrome version, adding glamour to sets while making lights a less invasive presence.
INPUT POWER: 350VA at 230V 50Hz
LIGHT SOURCE
Discharge lamp with a short arc burner in a reflector system
– Type:
OSRAM SIRIUS HRI® 190W+ (LAM002) – STANDARD
Philips MSD Platinum 5R (L10103) – OPTIONAL
– Output Lamp power: 189W
– Colour temperature: 8,000 K
– Luminous flux: 7,950 lm
– Average life: 2,000 h. The Osram lamp features 3,000 h if used with an integral Osram light engine (lamp + power supplier)
OPTICS
3-lens HQ optical group (patent pending)
Adjustable Beam Angle: from zero to 3.8°
Focus: electronic
Light output at 20 meters (65 feet): 59,760 lux
COLOR SYSTEM
Interchangeable color wheel with 14 colors + open
EFFECTS SECTION
Interchangeable gobo wheel with 17 fixed gobos + open
High speed shake effect
8-facet rotating prism
Frost filter
Mechanical shutter and adjustable speed strobe effect
Mechanical dimmer
CONTROL AND PROGRAMMING
Max 20 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Art-Net / RDM
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input and output
MOVING BODY
Travel:
– PAN = 540° – TILT = 250°
Maximum speeds:
– PAN = 2.45 sec
– TILT = 1.30 sec
Resolution:
– PAN = 2.11° – PAN FINE = 0.008°
– TILT = 0.98° – TILT FINE = 0.004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.
