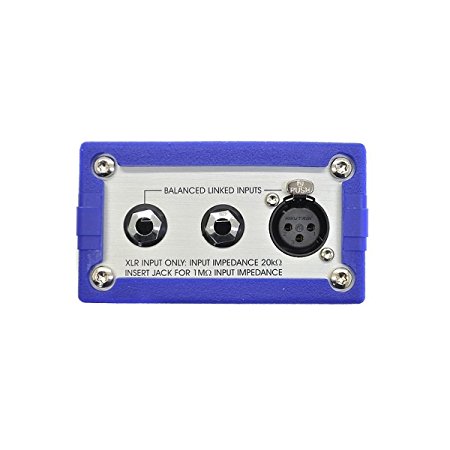

di3: Klark Teknik D100 Active Direct Box
€6,00
The Klark Teknik DN100 Direct Injection Box is the natural successor to the long-established LBB100. A ground-up redesign provides an extended dynamic range, lower noise floor and all the world-class audio performance you’d expect from Klark Teknik. DN100 is also designed to handle the rigours of life on the road: a thick aluminium shell protects the electronics, and this in turn is protected by a tough silicone rubber casing, which is replaceable and available as a spare part.
Klark Teknik DN100 Specifications:
Input: active electronic, balanced or unbalanced
Impedance: 1M ohms nominal, balanced or unbalanced (jack connectors) 20K ohms (XLR input only)
Connectors: 2 quarter inch jacks and 3-pin XLR linked in parallel
Max. Level: 30dBu
Attenuator: 20dB, switchable
Output: Transformer Isolated, balanced
Impedance: 300 ohms
Connector: 3 pin XLR
Max. Level: 10dBu with load >2k ohms
Min. load: 600 ohms
Performance:
Noise: -100dBu, 20Hz to 20kHz unweighted, with input terminated by 10k resistor
Frequency response: +0.5/-1dB 20Hz to 20kHz
Distortion (THD+N): <0.01% @ 1kHz, +4dBu output
Power Requirement:
Voltage: +48V Phantom
Current consumption: <10mA
Weight: Dimensions (LxWxH): 5.6″ x 4.2″ x 2.35″ (142 x 106 x 60 mm)
