Fl03: Yamaha DBR 12
€20,00

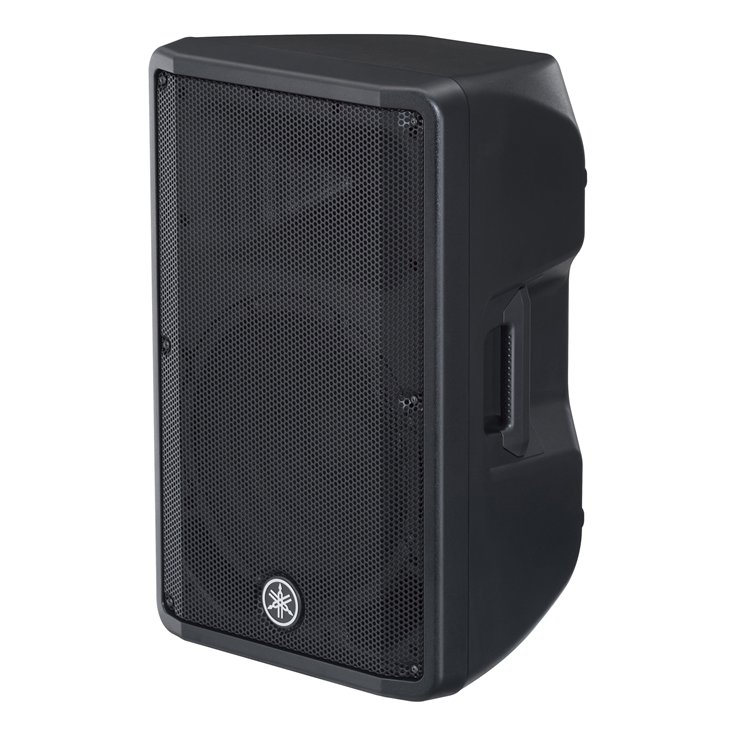

Able to withstand a whopping 131dB SPL, the Yamaha DBR12 12″ active speaker gives you an accurate, controlled performance. Using the latest DSP, Yamaha applied their proprietary FIR-X tuning to optimize the sound and protection algorithms of the DBR12, providing you with plenty of muscle, despite this active speaker’s rather diminutive size. Incredibly versatile, you can use the DBR12 as a great-sounding main speaker or as a high-performance floor monitor with a quick flick of the Yamaha DBR12 12″ active speaker’s D-Contour switch. A switchable highpass filter also makes it easy for you to add a subwoofer to your rig.
Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 52Hz – 20kHz
Nominal coverage H 90° V 60°
Components LF Diameter:12″ cone, Voice Coil:2″, Magnet:Ferrite
HF Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) 131dB SPL
I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)
Dimensions W 376mm (14.8″)
H 601mm (23.7″)
D 348mm (13.7″)
Net weight 15.8 kg (34.8 lbs)
